Fire Extinguisher Placement Requirements: An Atlanta Guide

Fire extinguisher placement requirements generally state that extinguishers must be visible, accessible, and located within specific travel distances based on hazard type, as outlined by OSHA and NFPA standards.

Understanding where and how to place fire extinguishers is essential for safety compliance, passing inspections, and protecting occupants during an emergency. Improper placement can result in code violations, fines, or worse, an extinguisher that is not reachable when it is needed most.

Fire Extinguisher Placement Requirements Under OSHA and NFPA

Both OSHA and NFPA provide detailed guidelines for extinguisher placement in workplaces and commercial properties.

OSHA Requirements for Fire Extinguisher Placement

The Occupational Safety and Health Administration requires employers to:

• Provide portable fire extinguishers when necessary
• Mount, locate, and identify extinguishers so they are readily accessible
• Ensure extinguishers are not obstructed or blocked
• Maintain extinguishers in a fully charged and operable condition

OSHA references NFPA 10 for more specific technical guidance on spacing and classification.

NFPA 10 Standards for Fire Extinguisher Placement

NFPA 10 is the primary standard that outlines:

• Maximum travel distances
• Mounting height requirements
• Hazard classifications
• Extinguisher size and rating

Local fire marshals in the Atlanta area typically enforce codes based on NFPA standards along with state and municipal amendments.

Travel Distance Requirements by Fire Class

One of the most important factors in fire extinguisher placement is travel distance. This refers to how far a person can be from an extinguisher in a building.

Class A Hazards

Class A fires involve ordinary combustibles such as paper, wood, and cloth.

For Class A hazards:

• Maximum travel distance is typically 75 feet
• Minimum rating often required is 2A

This applies to many offices, schools, and retail spaces.

Class B Hazards

Class B fires involve flammable liquids such as gasoline, oils, and solvents.

For Class B hazards:

• Travel distance is typically 30 to 50 feet depending on extinguisher rating
• Placement must account for higher risk areas

Auto shops and certain industrial facilities in Atlanta frequently fall into this category

Class C Hazards

Class C fires involve energized electrical equipment.

There is no specific travel distance requirement unique to Class C. Instead:

• Extinguishers must be appropriate for electrical fires
• Placement follows Class A or B rules based on surrounding materials

Class K Hazards

Class K fires involve commercial cooking oils and fats.

For commercial kitchens:

• Extinguishers must be located within 30 feet of cooking equipment
• They must be specifically rated for Class K

Restaurants in Atlanta must comply with these strict kitchen placement rules to pass inspections.

Related: Top Restaurant Fire Hazards in Atlanta

Mounting Height and Visibility Rules for Fire Extinguisher Placement

Proper mounting is just as important as spacing.

Mounting Height of Fire Extingushers

NFPA 10 requires:

• Extinguishers weighing 40 pounds or less must be mounted so the top is no more than 5 feet above the floor
• Extinguishers over 40 pounds must be mounted with the top no more than 3.5 feet above the floor
• The bottom of the extinguisher must be at least 4 inches above the floor

These height requirements ensure accessibility while preventing damage.

Visibility and Access for Fire Extinguishers

Extinguishers must be:

• Clearly visible
• Unobstructed
• Located along normal paths of travel
• Marked with visible signage if not immediately obvious

They should not be hidden inside cabinets unless properly labeled and easily accessible.

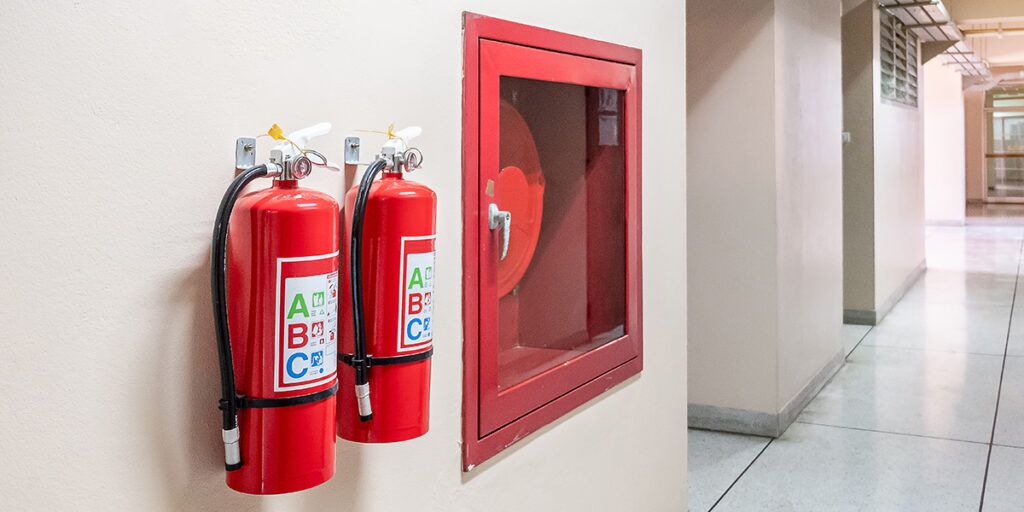

Common Placement Locations in Commercial Buildings

In most Atlanta commercial properties, fire extinguishers are commonly placed:

• Near exits
• In hallways
• In mechanical rooms
• Near electrical panels
• Inside commercial kitchens
• In warehouse areas

The goal is to allow occupants to access an extinguisher while maintaining a clear exit path behind them.
Extinguishers should not be placed in areas where a fire could block access, such as directly next to high hazard equipment without alternate access routes.

Fire Extinguisher Placement in Warehouses and Industrial Facilities

Industrial spaces often require more detailed planning due to higher hazard levels.

Key considerations include:

• Flammable liquid storage areas
• Welding zones
• Equipment maintenance areas
• Fuel storage locations

In larger warehouse environments, spacing calculations must consider square footage and hazard classification. High hazard areas often require closer spacing and higher rated extinguishers.
Facilities in the Atlanta metro area may also be subject to additional requirements from local fire departments.

Fire Extinguisher Placement in Multi-Story Buildings

Each floor of a multi story building must have its own properly spaced extinguishers.

Important rules include:

• Travel distance limits apply per floor
• Stairwells often require extinguishers nearby
• Mechanical penthouses must have coverage

Property managers should ensure that extinguishers are evenly distributed and not concentrated in a single area.

Fire Extinguisher Placement in Residential and Multifamily Considerations

While single family homes are not always subject to OSHA standards, multifamily buildings in Atlanta must follow local fire codes.

Common requirements include:

• Extinguishers in common corridors
• Units within required travel distance
• Placement near shared amenities such as gyms or laundry rooms

Landlords are typically responsible for ensuring compliance in common areas.

Inspection and Maintenance Requirements

Proper placement alone is not enough. Fire extinguishers must also be inspected and maintained.

Monthly Visual Inspections

Building owners or designated staff should check:

• Pressure gauge is in operable range
• No visible damage
• Seal and pin intact
• No obstruction

Learn fire extinguisher inspection requirements: Understanding Fire Extinguisher Inspection Requirements for Commercial Buildings in Georgia

Annual Fire Extinguisher Maintenance

A certified professional must perform annual servicing to ensure compliance with NFPA 10. In Atlanta, fire inspectors often verify inspection tags during routine checks or occupancy reviews.

• Pressure gauge is in operable range
• No visible damage
• Seal and pin intact
• No obstruction

Why Proper Fire Extinguisher Placement Matters

Correct fire extinguisher placement:

• Reduces response time in emergencies
• Improves occupant safety
• Helps prevent fire spread
• Ensures compliance with OSHA and local codes
• Avoids fines and failed inspections

Improper placement can create dangerous delays during critical moments. In a fast-growing metro area like Atlanta, where commercial properties range from high-rise offices to industrial facilities, understanding placement rules is essential for business owners and property managers.

Final Thoughts on Fire Extinguisher Placement Requirements

Fire extinguisher placement requirements are designed to ensure that extinguishers are accessible, visible, and within safe travel distances based on hazard type. OSHA and NFPA 10 provide clear standards for spacing, mounting height, and hazard classification.

Whether you manage an office, restaurant, warehouse, or multifamily property in Atlanta, compliance protects both your occupants and your business. If you need help evaluating your building for compliance or updating your fire protection plan, contact Cliffs Fire today for assistance.
